CS4304P Overview

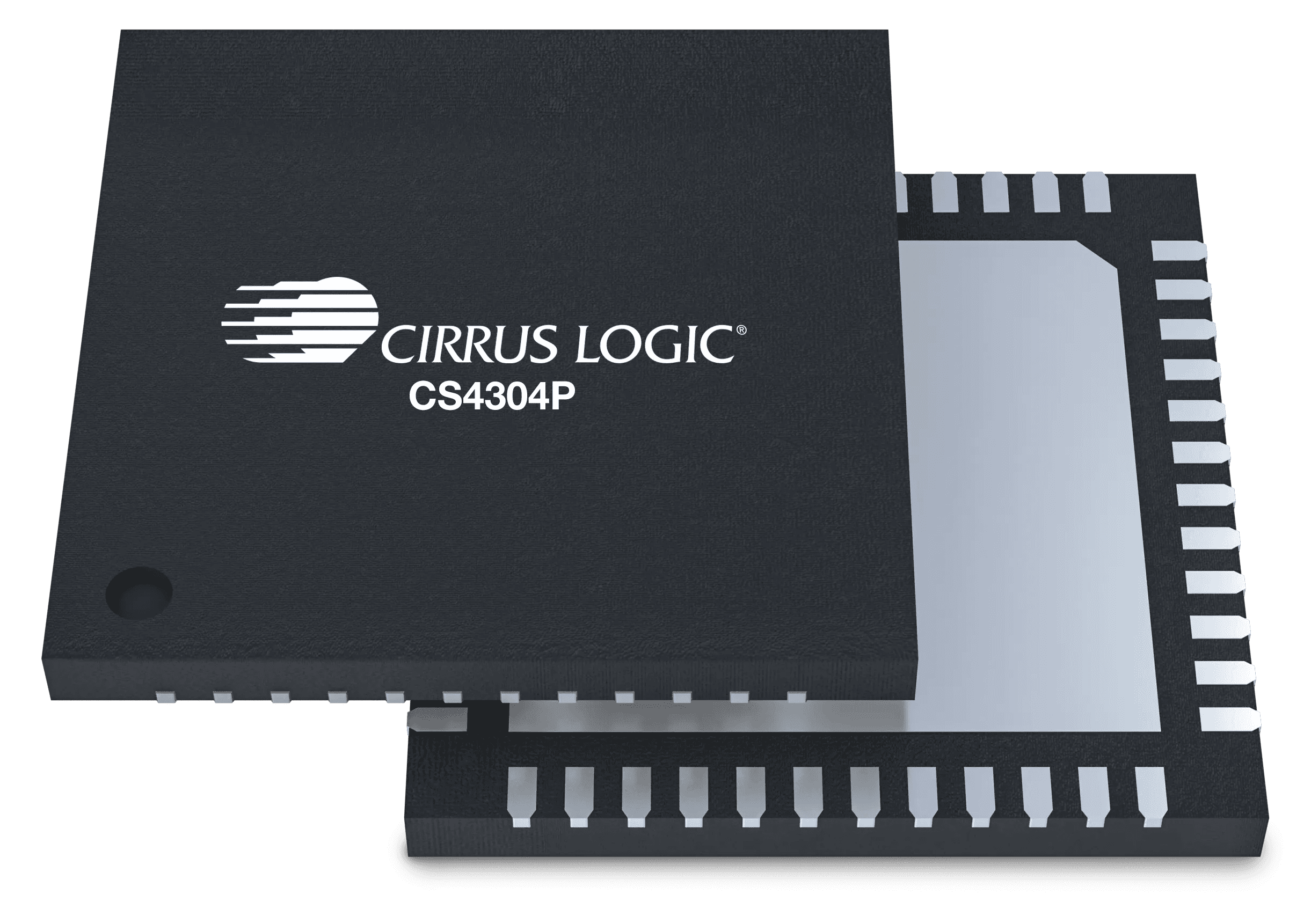

The CS4304P is a 4-channel, 32-bit resolution audio DAC supporting sample rates of up to 768 kHz. The CS4308P’s proprietary filtering adapts to preserve clarity and tonal accuracy across sample rates of 44.1 kHz to 768 kHz, creating a consistent sound that stays balanced independent to the content users are playing. Compared to alternative solutions that rely on specialized low-noise supplies, the CS4304P achieves 123 dB dynamic range without added BOM cost and complexity. Operating at 16 mW/ch, the CS4304P is optimized for high audio performance without compromising power efficiency or cost.

Learn more about Cirrus Logic’s high-performance audio solutions.

CIRRUS®
CIRRUS ROCKS®
ENGINEERED TO ROCK®
INNOVATION THAT ROCKS®

Product Features

  • High-performance 4-channel DAC

    • Differential analog outputs

    • High-resolution 32-bit digital architecture

    • Low-latency digital filters and digital volume control

  • PLL supports range of external system-clock references

  • Synchronous operation across multiple devices

  • Audio serial port (ASP) sample rates up to 768 kHz

    • I2S, left-justified, and TDM data formats

    • DSD up to 512xfs

  • Hardware and software control modes

    • Hardware control with no host processor required

    • I2C control port up to 1 MHz

    • SPI control port up to 24 MHz

  • Single-supply operation at 3.3 V

    • Support for 1.8 V–3.3 V digital input/output

Parametric Specifications

Channels Out4
DAC Dynamic Range (dB)123
DAC THD+N (dB)-115
Sample Rate (kHz)768
Resolution (bits)32
Analog Power Supply (V)3.3
Digital Power Supply (V)3.3
Logic Power Supply (V)1.8-3.3
Output Level (Vrms)2
Target MarketPro Audio
Features123 dB dynamic range (A-weighted), –115 dB total harmonic distortion + noise, Advanced digital filters
Package48 QFN
